NIR-HR HYPERSPECTRAL CAMERA
Spectral Range: 900-1700nm
Spectral Resolution: <5nm
High spectral resolution, good spatial resolution and high frame rates enable high speed measurements in the near-infrared spectral range.
Ideal for a wide range of scientific and industrial process applications in the near infrared spectral range.
Fully compatible with all of our
hyperspectral scanning solutions and
suitable
objective lenses.
TECHNICAL SPECIFICATIONS
Note: technical specifications can vary dramatically based on many factors i.e. lens being used, application parameters etc. The figures below show the specifications of the camera operating under typical/expected conditions.
| Parameter | Value | Units |
|---|---|---|
| Mode of Operation | Push-broom | |
| Spectral Range | 950-1700 | nm |
| Optical Spectral Resolution | <5 | nm FWHM |
| Pixels (Spatial Line) | 320 | pix |
| Spectral Pixels | 256 | pix |
| Spectral Sampling/pixel | 3 | nm |
| Smile and Keystone | Sub-pixel across output field | |
| Camera Output | Up to 14 | bit |
| Camera Interface | USB-3, GigE | |
| Frame Rate (full resolution) | 344 | lfps |
| Shutter | Integrated | |
| Lens Mount | C-mount | |
| Lens Options | 15, 22.5, 30, 56, 1:1 Macro | mm |

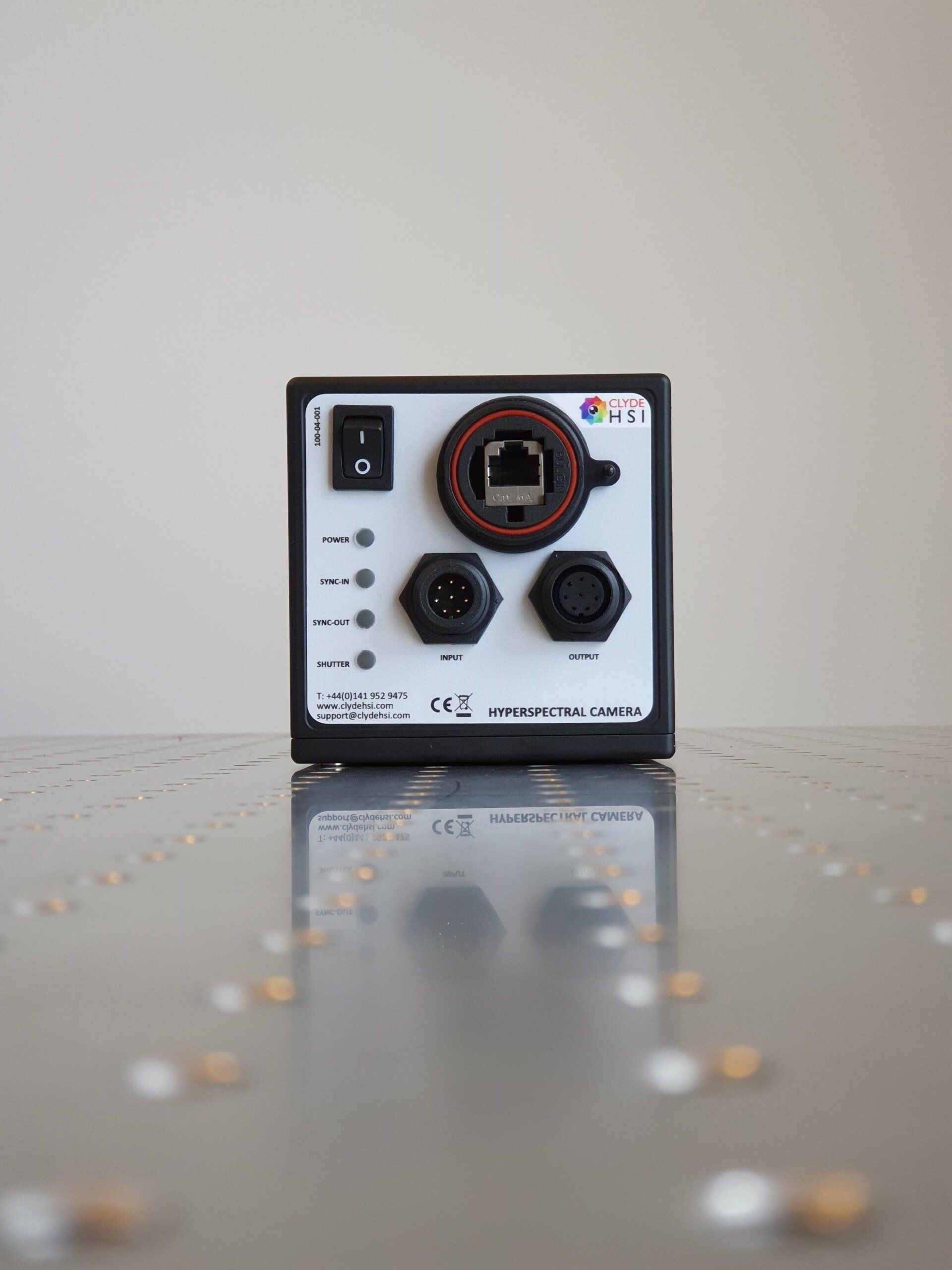

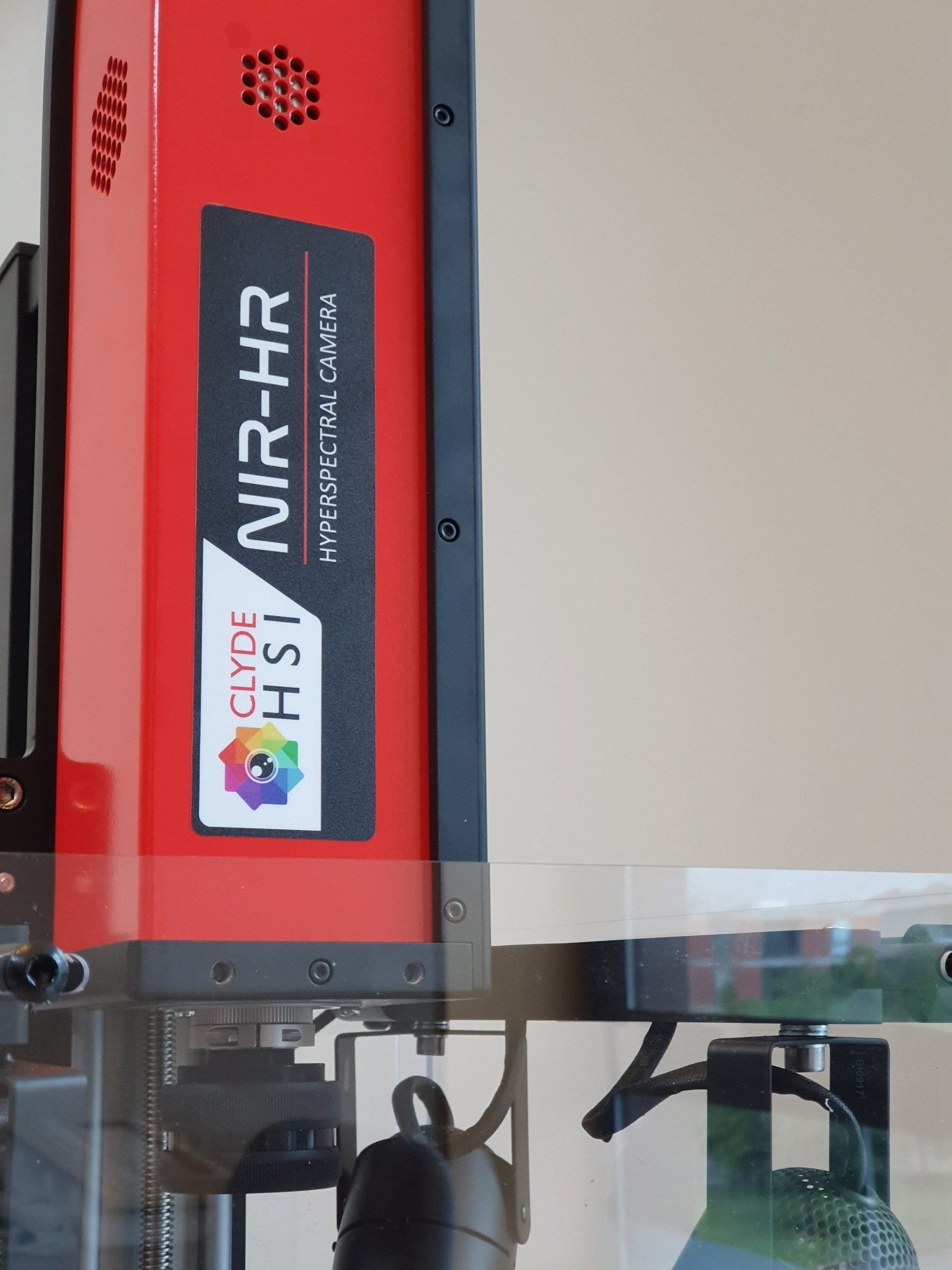

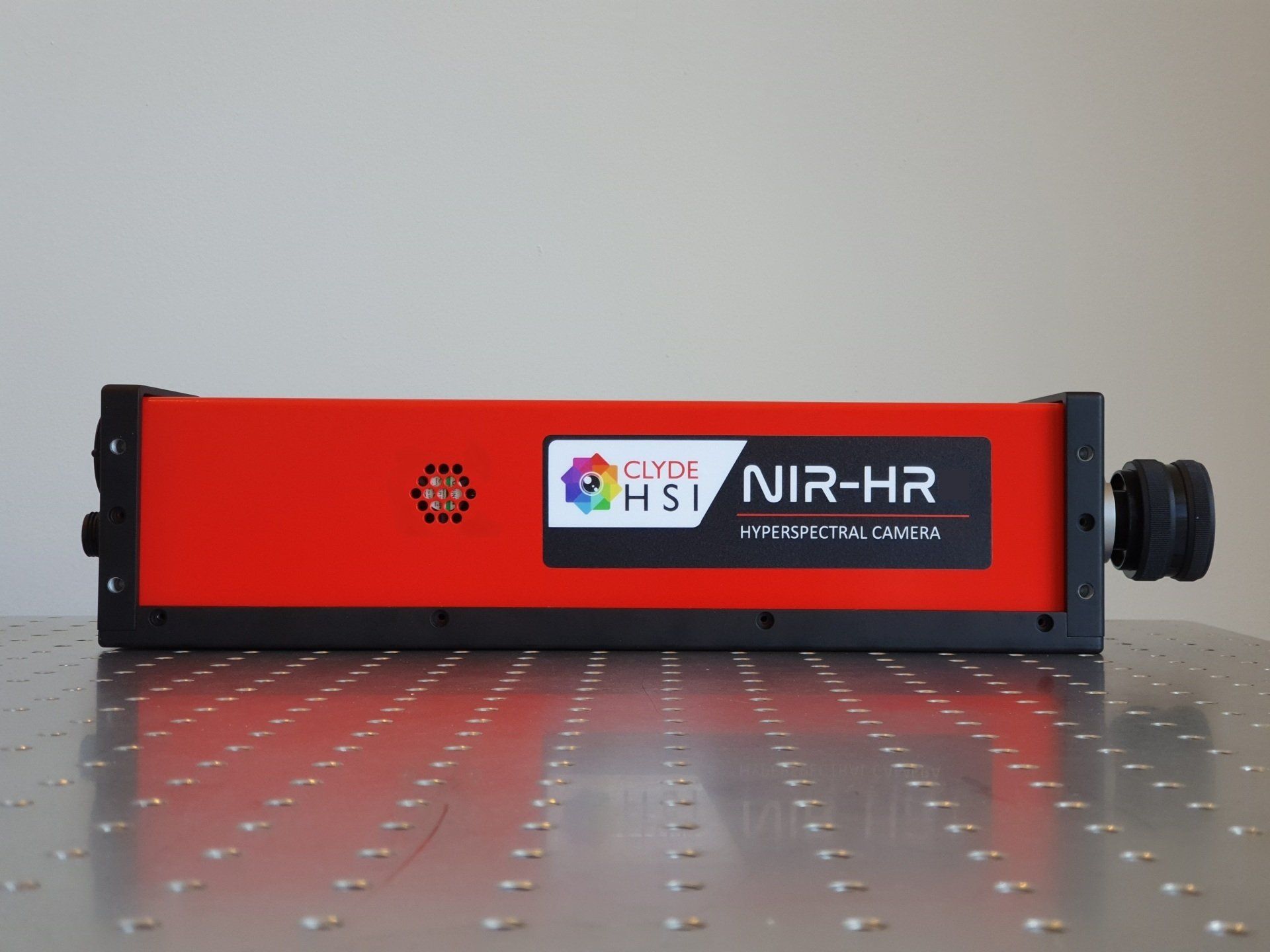

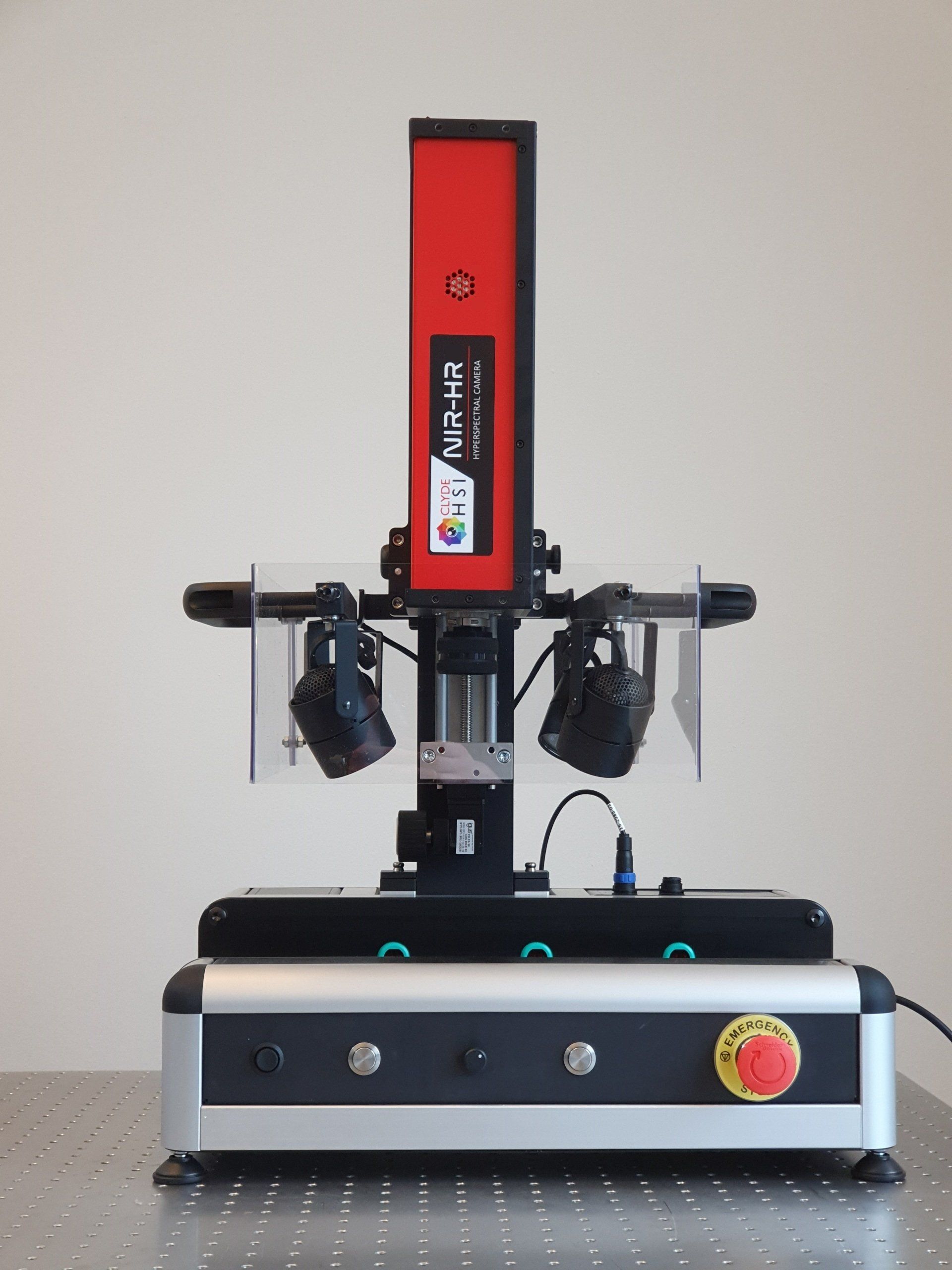

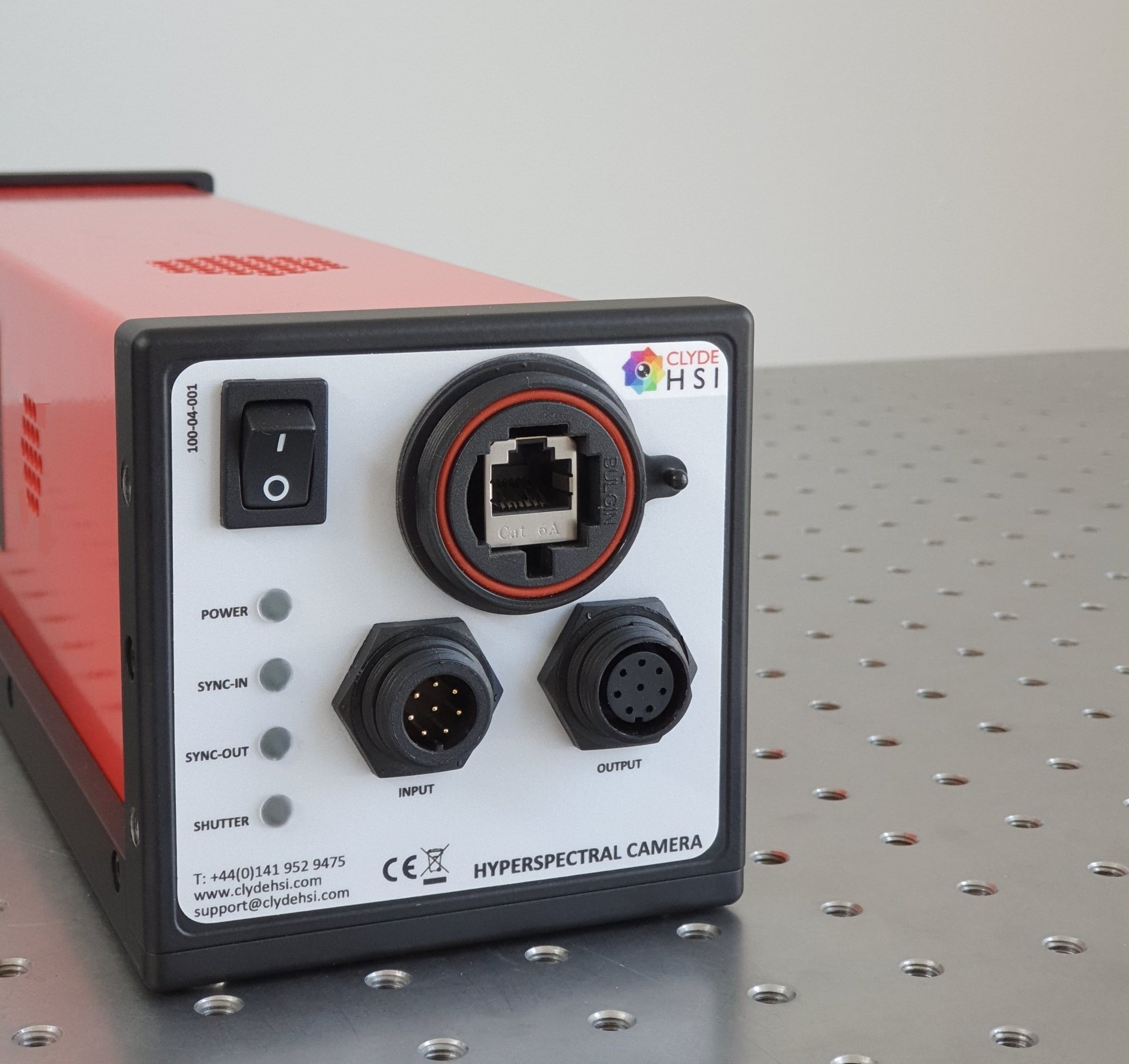

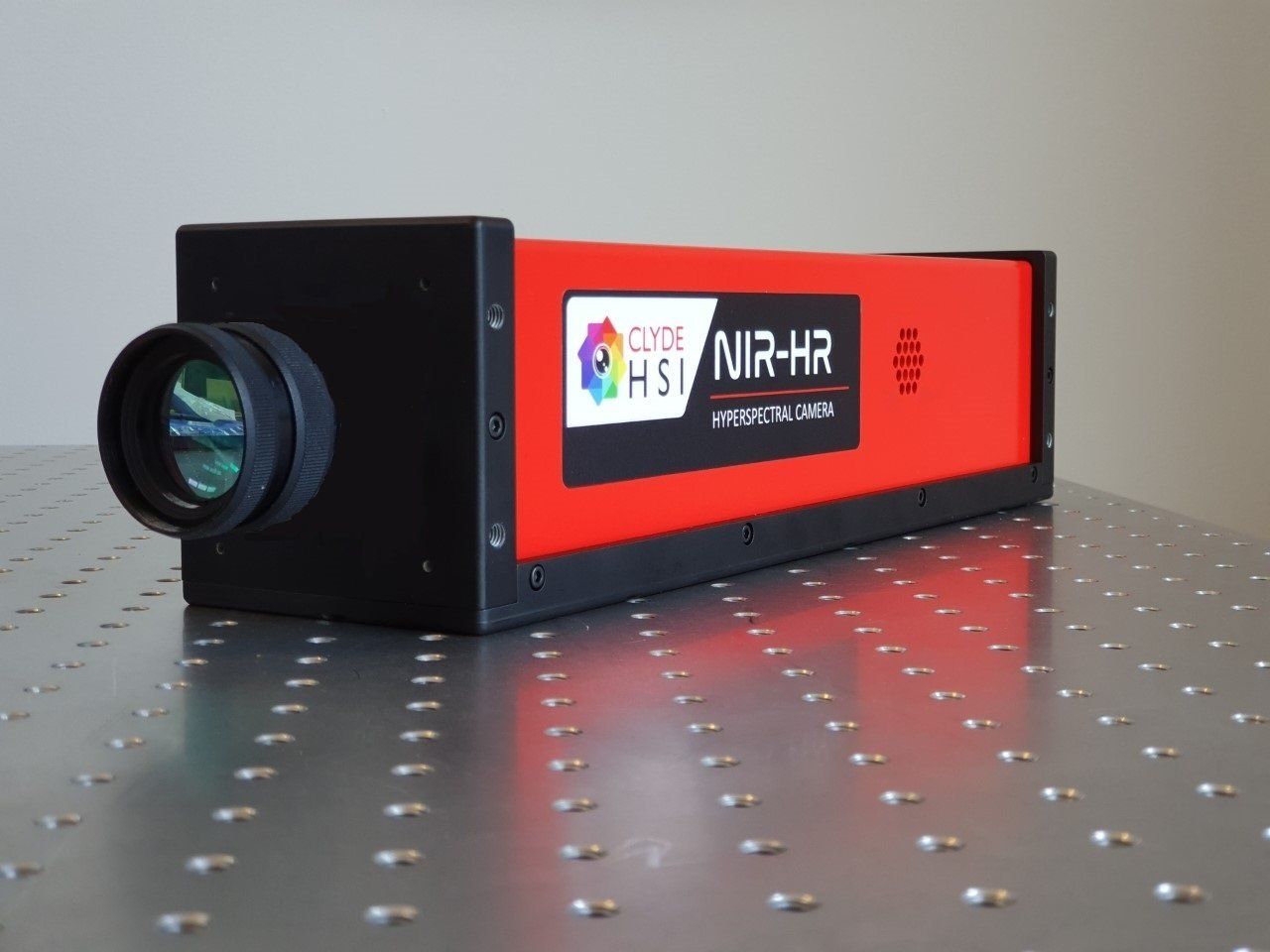

PHOTOS OF NIR-HR+
