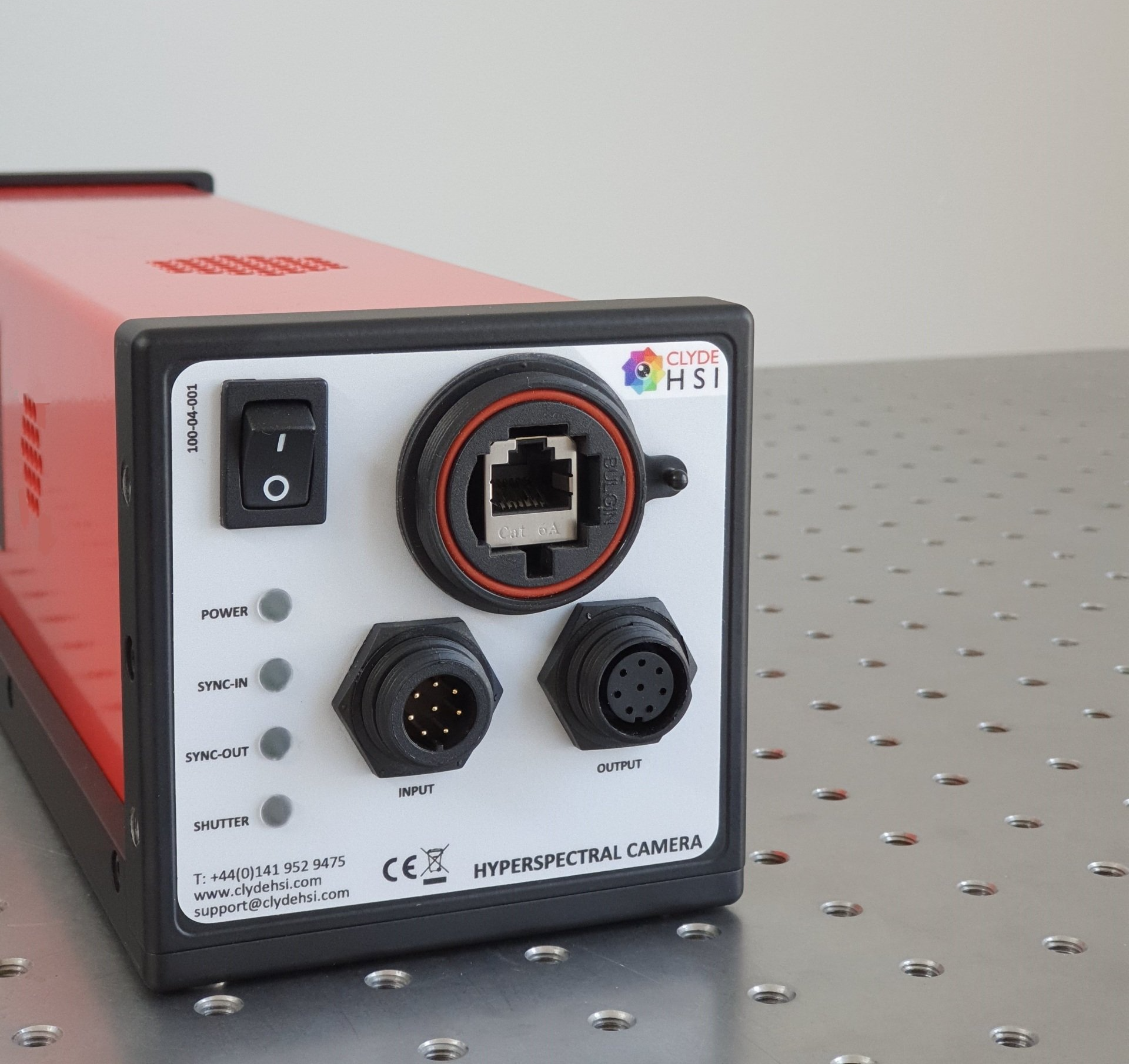

VNIR-S CÁMARA HIPERSPECTRAL
Rango espectral:
400-1000 nm
Resolución espectral:
8 nm
Cámara hiperespectral de nivel de entrada rentable y de alto rendimiento, adecuada para una amplia gama de aplicaciones industriales, de campo y de investigación.
Totalmente compatible con todos nuestros
soluciones de escaneo hiperespectraly adecuado
lentes objetivas
.
ESPECIFICACIONES TÉCNICAS
Note: technical specifications can vary dramatically based on many factors i.e. lens being used, application parameters etc. The figures below show the specifications of the camera operating under typical/expected conditions.
RANGO ESPECTRAL
400-1000 nm
RESOLUCIÓN ESPECTRAL
Típico: 8 nm
DISPERSIÓN ESPECTRAL
1.0 nm / píxel
SPECTRAL BANDS FROM RLD
892/446/223
SPECTRAL BANDS FROM OSR
75
NO. PÍXELES EN CRUZ
1400
LINE FRAME RATE
100 lf / s
ERROR SONRISA Y TRAPEZOIDAL
Subpíxel en el campo de salida del espectógrafo
