ART SCANNER
SCANNING SYSTEM
Highly stabilised and monitored X Y (Z)
hyperspectral scanning solution for precision scanning of artworks and objects up to 1m x 1m or 2.5m x 2.5m - ideal for when large areas must be scanned, whilst prioritising high precision and resolution.
Fully compatible with all of our
hyperspectral cameras and fully operated - by both experienced and new users - through our unique
spectraSENS software.
SYSTEM OVERVIEW

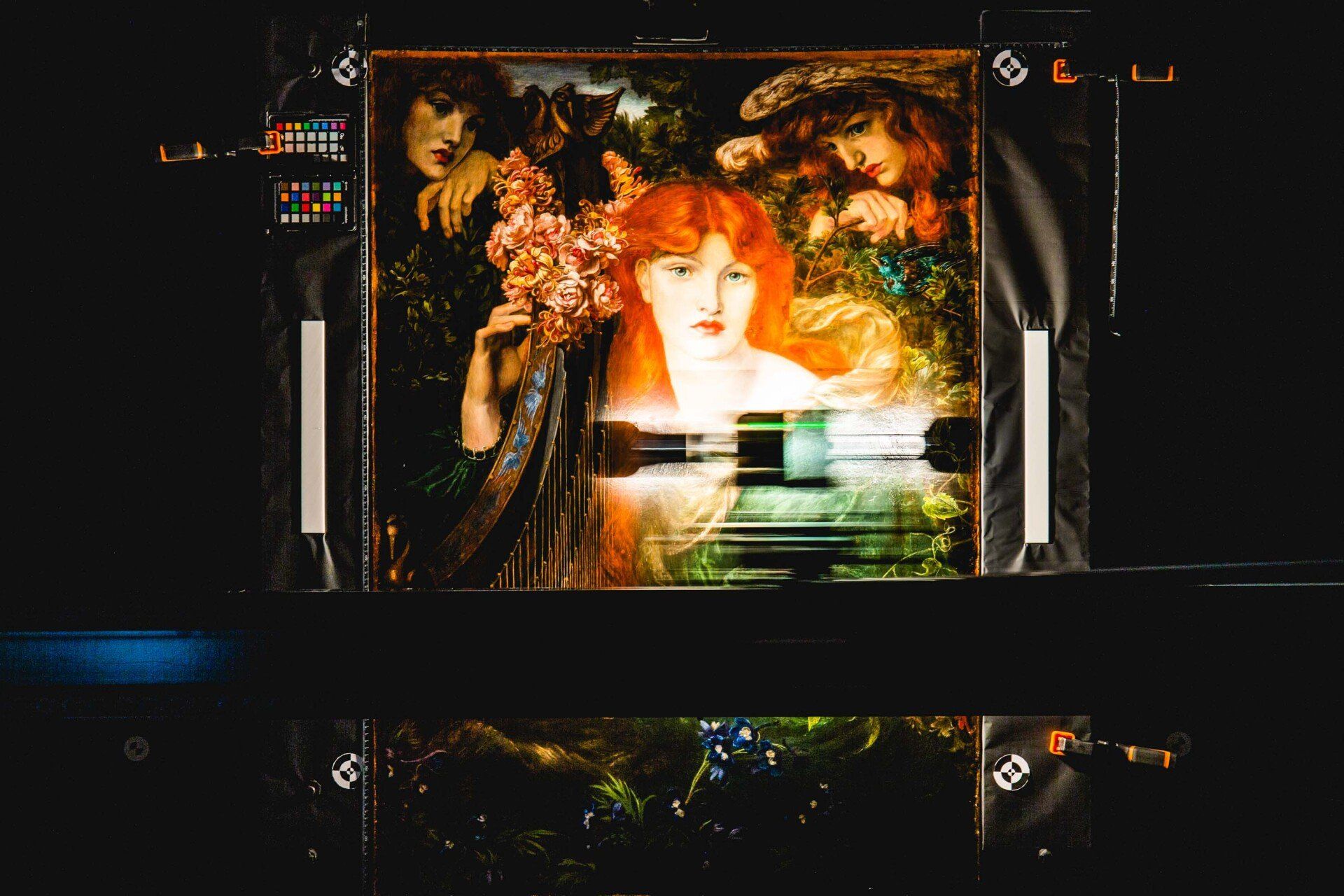

ClydeHSI hyperspectral 2-D Large Area Art Scanning Systems allow our clients to view and analyse their fine works of art like never before.

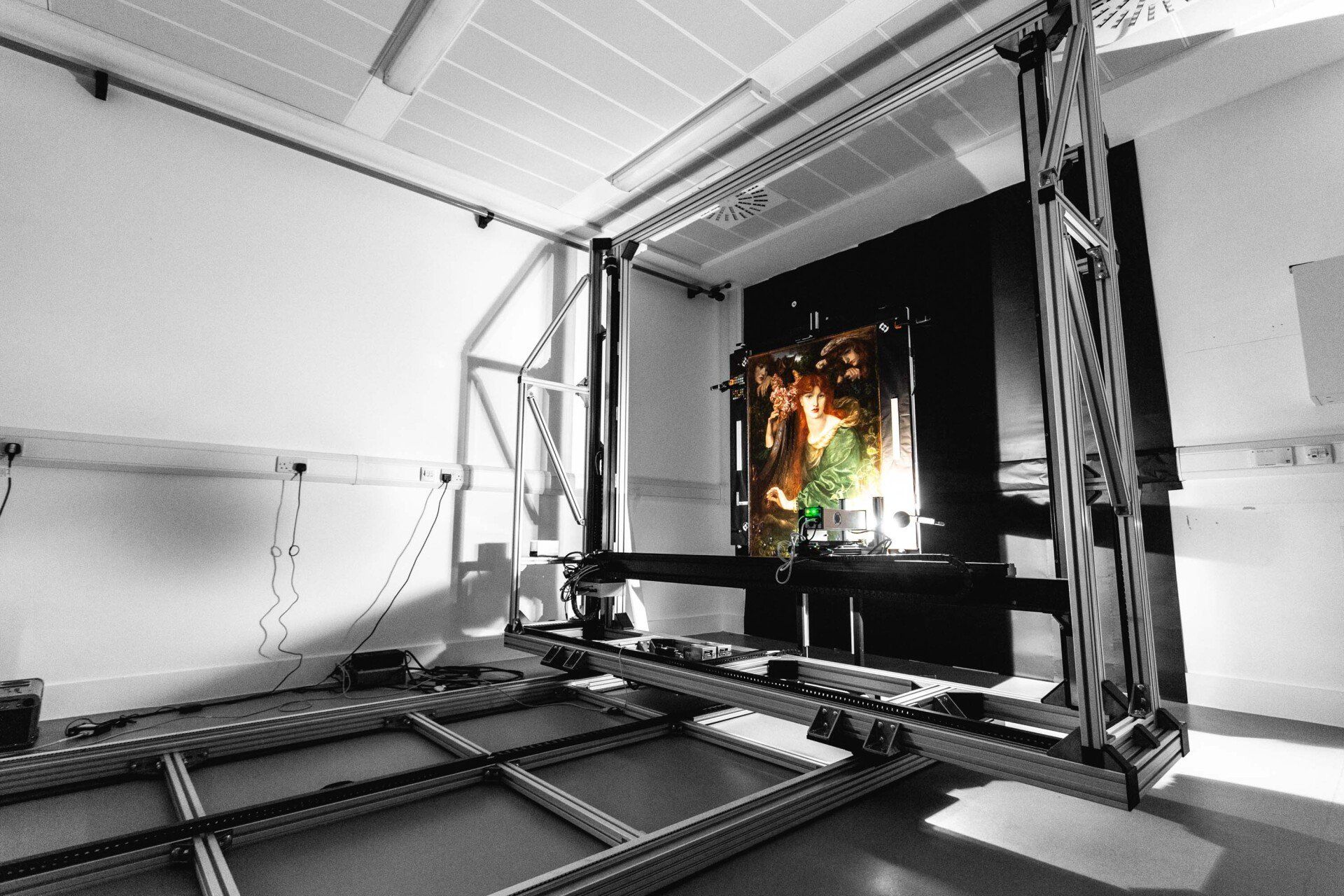

Highly stabilised and monitored X Y (Z) scanning system for precision scanning of artworks and objects up to 1m x 1m or 2.5m x 2.5m, with macro capability up to 25µm across the full target area and spatial step resolutions as fine as 5µm.
Shape tracking facility and stand-off distance adjustment that maintains the system geometry to artwork. Unique Curvature Monitor and compensation system to maintain on-target resolution, ensure focus, and accommodate for shape changes in the artwork across the scanning area.
Ideal for when large areas must be scanned, whilst prioritising high precision and resolution.
TECHNICAL SPECIFICATIONS
| 値 | 単位 | ||
|---|---|---|---|
| X、Y、Zs、Zm | 大面積高解像度スキャンのためのスペクトル補正とマルチストリップモザイクイメージングによるマルチモーダル操作 | ||
| 最大スキャンエリア | 2500 x 2500 | mm2 | |
| 88,000 x 88,000 | |||
| µm | |||
| ターゲットの光学解像度 | ≥25 | µm | |
| エンコードされた | |||
| Zs、（スタンドオフステージ） | 0から3000 | んん | 他のスタンドオフ距離も利用できます。ClydeHSIにお問い合わせください |
| Zm（マクロステージ） | んん | ||
| リアルタイムの距離測定 | 制御システムは、アートワークの曲率を自動的に調整します | ||
| ≤50 | kg | ||
| 測量カメラ | 16Mpix、400Mpixオプション;交換レンズ |
