研究所 スキャンシステム
事前構成されたデスクトップラボ
ハイパースペクトルスキャンソリューション、A3、A4、および1m x1mの領域をスキャンできます-芸術保護および法医学分析アプリケーションでのドキュメントスキャンに最適です。
私たちのすべてと完全に互換性があります
ハイパースペクトルカメラ経験豊富なユーザーと新規ユーザーの両方が完全に操作します私たちのユニーク
SpectrumSENSソフトウェア。
システムの概要

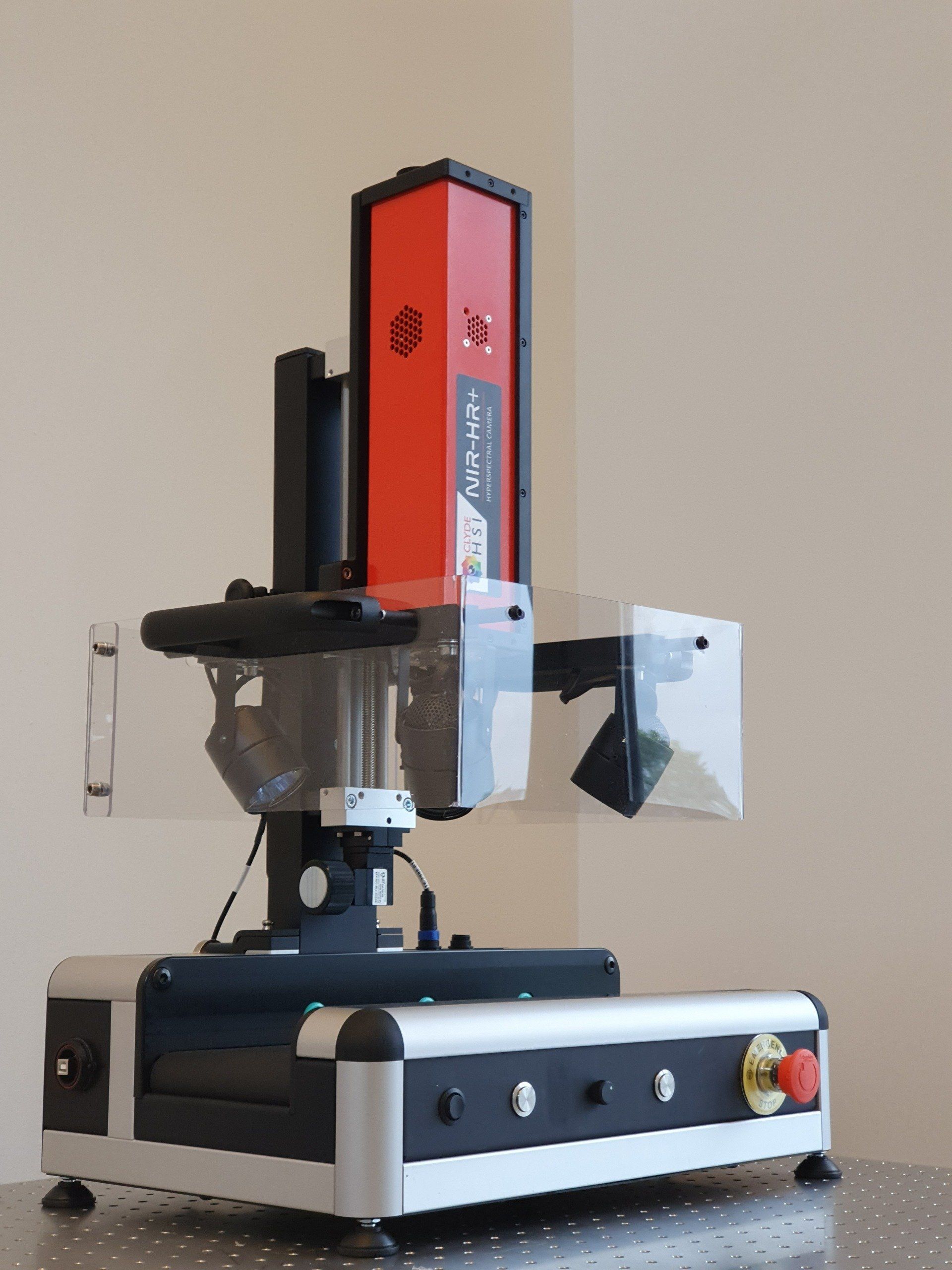

ClydeHSI laboratory scanner solutions are complete integrated solutions that can simultaneously hold one or two hyperspectral cameras and acquire data simultaneously to capture full spectral from 400 to 2500 nm depending upon the hyperspectral cameras chosen.

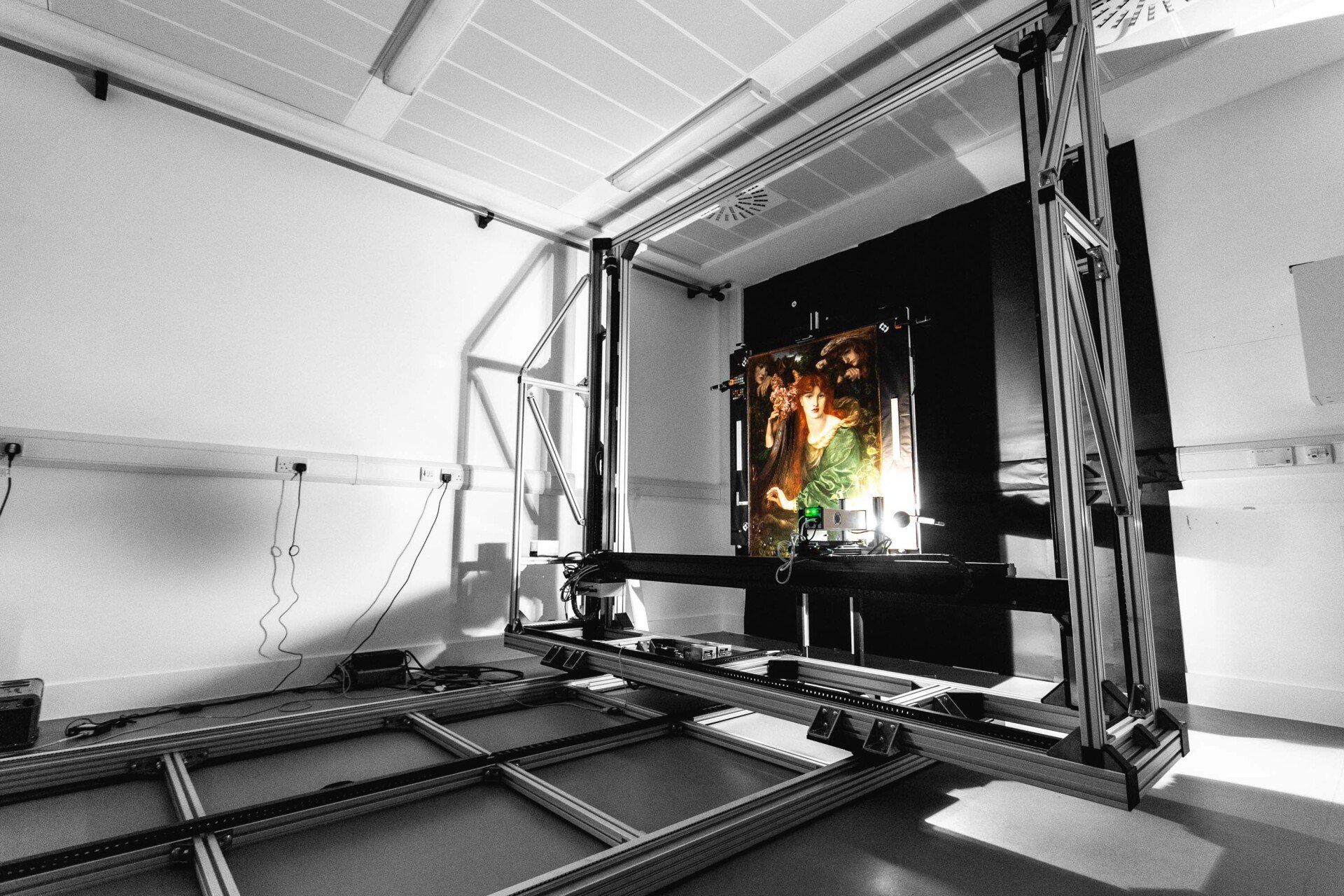

The systems are complete pre-configured scanners for area scanning over approximately A4, A3 and 1m x 1m sized areas by looking down onto target materials.
Ideal for document scanning in A4 and A3 sizes.
All units comprise rigid camera support arm, precision height adjustable and with sensors for square pixel determination. Sample holders for documents, books, paintings, and other objects in various applicational fields are also available from ClydeHSI.
Automatic placement of white tile for 100% reflection measurement and focus tile to check image focus. The 1m2 scanner has an optional high-resolution 2D camera for conventional photography and survey use.
TECHNICAL SPECIFICATIONS
単位 | ||||
---|---|---|---|---|
モデル | 1m2 | |||
スキャンエリア | 250 x 300 | mm2 | ||
400 | 1200 | んん | ||
100lfpsでのスキャンレート | ||||
スキャナーの深さ | 1400 | んん | ||
スキャナーの長さ | 1200 | 1400 | んん | |
制御インターフェース | USB 2.0 | USB 2.0 | USB 2.0 | |
90〜260、50 / 60 | 90〜260、50 / 60 | 90〜260、50 / 60 | V AC、Hz |
